Double stage ring blower

Double stage ring blower

₹ 23,000.00 - ₹ 1,20,000.00 (* Price depends on Variant and features and subjected to change based on requirements)
  • Model Number:

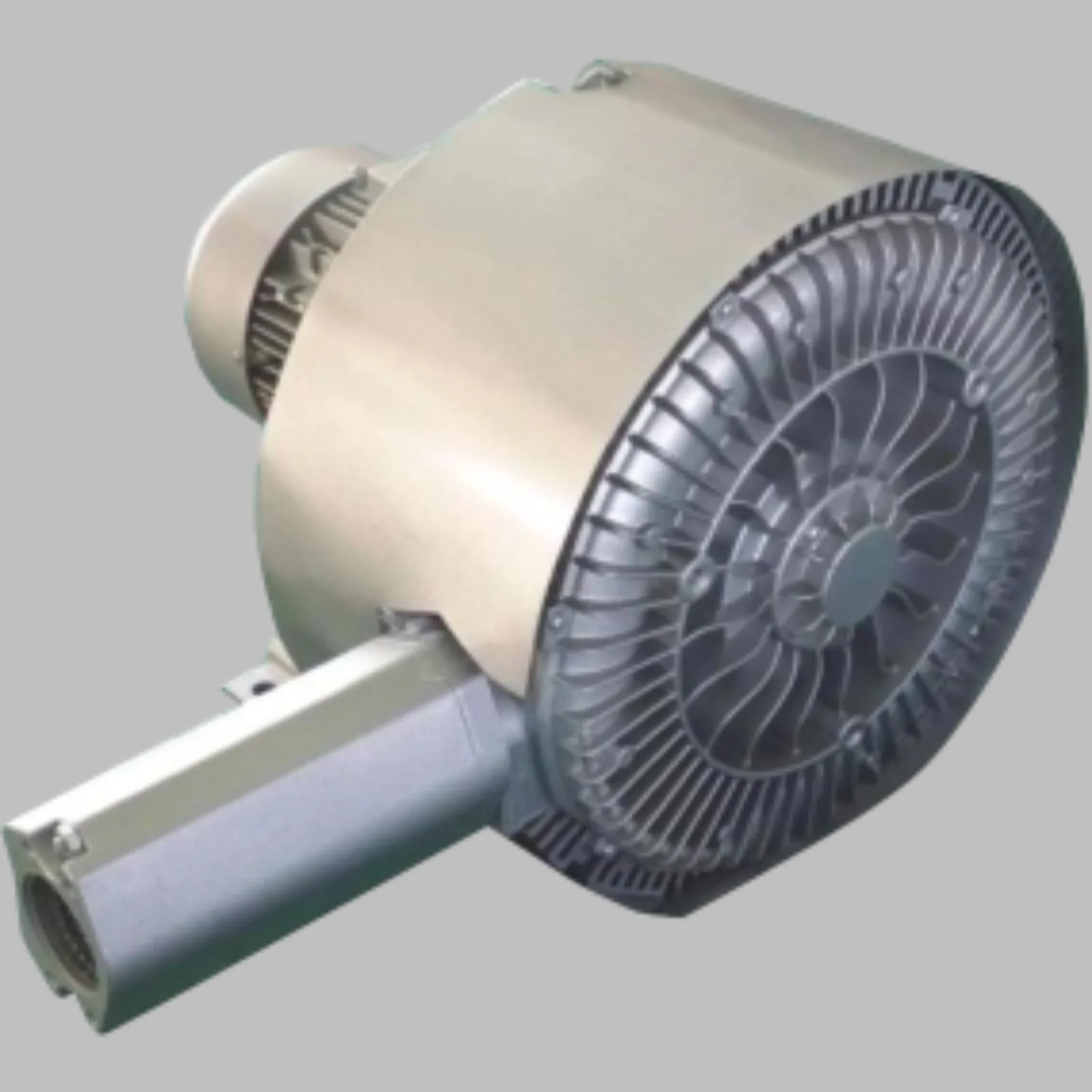

  • Double stage ring blower 7B
  • Make:

  • India
  • User Ratings:

  • 4.6 (in 105 reviews)
Cleantek double stage Ring blowers are commonly used in various industrial applications where a steady flow of air or gas is required. They are used for pneumatic conveying systems, vacuum lifting, ae

Double stage Ring Blower:


Double stage Ring blower is an compact and direct drive air blower model used in various suction and pressure applications. It is produced in single impeller fan and double impeller fan design to increase the delivery pressure. To achieve high efficiency electric motor and blower impeller is directly fitted. This ring blower available in regular IE2, IE3,  IP55 protection, Belt drive and IP65 Explosion proof versions.

  • DESCRIPTION
  • INFORMATION
  • Product Video
  • Technical Specifications
  • Installation Images
  • CASE STUDY
  • FAQ

Double Stage Ring Blower:



CLEANTEK manufactures the latest Technology Double Stage Ring Blower, containing a double impeller fan attached directly to the Motor Shaft. The double impeller fan design aims to increase the delivery pressure and other parameters. To achieve high efficiency, the blower impeller fan directly fits onto the drive motor. Furthermore this ring blower is available in various versions: regular IE2, IE3, IP55 protection, Belt drive, and IP65 Explosion proof versions. CLEANTEK double stage blowers find use in Wastewater Aeration Applications.Therefore these blowers suit various running conditions and atmospheres exceptionally well.



Fish, Prawns, Shrimps need to breathe Oxygen in water. Oxygen enter water by surface agitation and Supply air threw pipeline inside water. Sufficient oxygen is required for fishes to live in water. Air blowers will lower CO2 levels through a chemical reaction. Air Blower provide enough oxygen for your aquarium. Aquaculture air blower supply oxygen to fish farms.Fish,Prawns, Shrimps need to breathe Oxygen in water. Oxygen enter water by aeration.

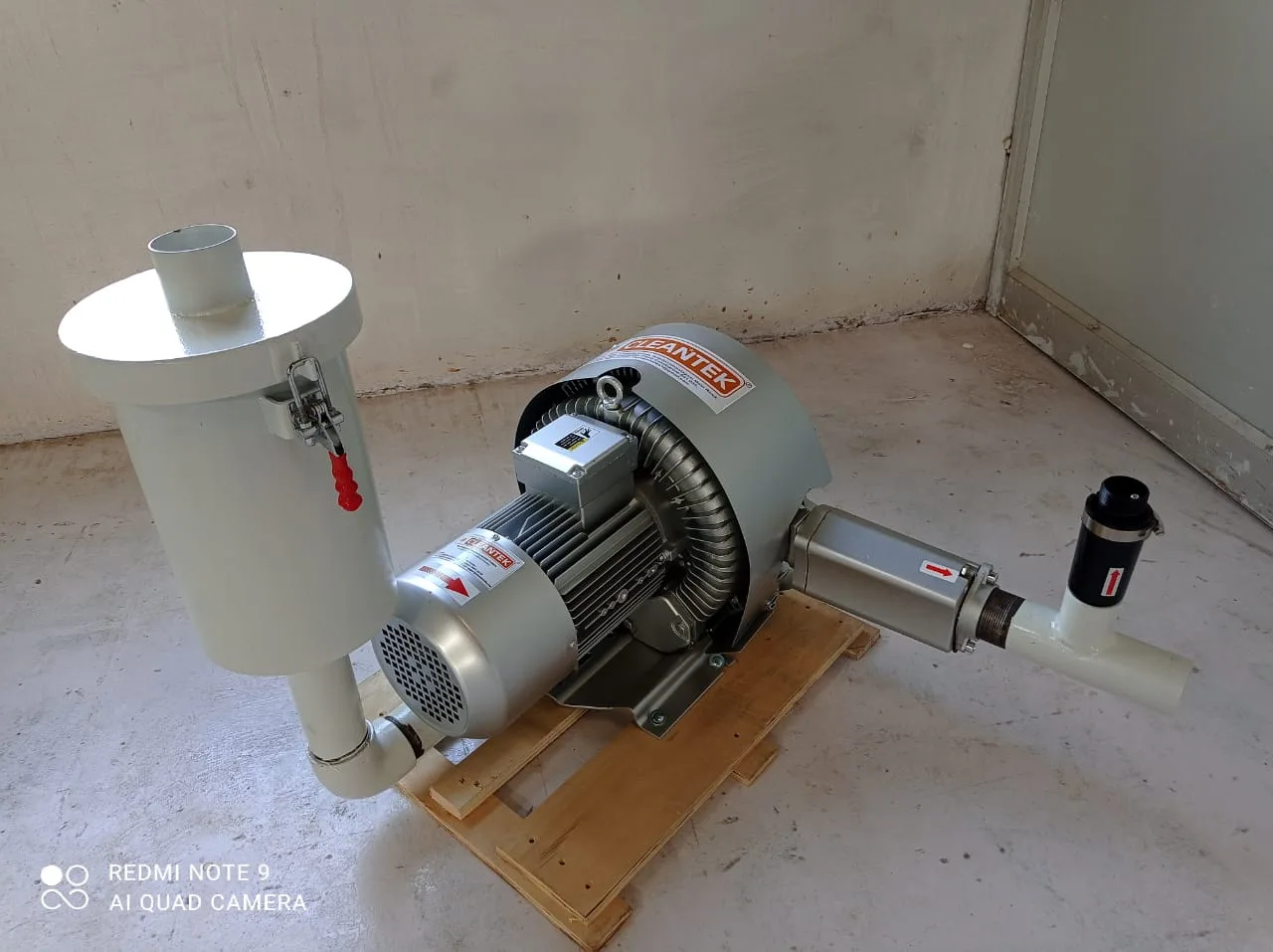

Double stage blower

Cleantek double Stage Ring Blower is a high-performance device specifically designed for aeration purposes. It offers exceptional efficiency and reliability, making it an ideal choice for various industrial and environmental applications.



The double impeller fan design ensures maximum airflow with minimal energy consumption, making it a cost-effective solution for aeration needs.Constructed with high-quality materials, the Cleantek Two-Stage Ring Blower is built to withstand harsh industrial environments, ensuring long-term durability and consistent performance.



The blower operates with minimal noise, making it suitable for installations in noise-sensitive areas. Its compact and robust design allows for easy installation and integration into existing systems. Designed for minimal maintenance, the blower reduces downtime and operational costs.

Features

  • 100% oil free and Insulation class is F,
  • Continous duty and Protection class is IP55.
  • Various Frequency 50 HZ & 60 HZ are available
  • Made of die cast aluminum
  • Both usage of Compressor and Vacuum (suction and blow).
  • Virtually maintenance free, with SKF Double sealed long life bearings.
  • Smart Compact design and Low noise Level
  • ATEX Explosion Proof Motor & Belt Drive is available
  • Anti corrosion blower and special color also avaialble


Benefits

  • Direct Drive
  • Compact in Size.
  • No Maintenance.
  • Light Weight.
  • More efficiency then Belt Drive Blower.
  • Continous duty and Protection class is IP55.
  • Made of die cast aluminum.
  • Both usage of Compressor and Vacuum (suction and blow).
  • Virtually maintenance free, with SKF Double sealed long life bearings.
  • Smart Compact design and Low noise Level.
  • ATEX Explosion Proof Motor & Belt Drive is available.
  • Anti corrosion blower and special color also available.

Cleantek double stage ring blower, also known as a two-stage ring blower, is a specialized type of blower used for various industrial applications where a high level of air pressure or vacuum is required. It's designed to provide greater efficiency and performance compared to single-stage blowers by compressing air in two stages instead of one.



Double stage Ring Blower

Double stage ring blowers are generally low maintenance, requiring periodic checks for wear and tear, lubrication of bearings, and ensuring that the inlet and outlet are free from obstructions. Regular maintenance ensures optimal performance and longevity of the blower.



Cleantek's double stage ring blowers are constructed from corrosion-resistant materials to withstand harsh industrial environments. This ensures durability and long-term operation. Cleantek adheres to strict quality standards, including ISO 9001:2015 and ZED certifications. Each blower is manufactured using high-quality materials and undergoes rigorous testing to ensure reliability and performance.



This blower called in various names like side channel blower, vortex blower, Turbine blower etc… Some of the applications of this blower as following.



  • Aquaculture for water aeration
  • Electroplating liquid agitation
  • Sewage treatment water agitation
  • Biofloc air supply
  • Material conveying
  • Dust collection
  • Vacuum cup
  • Trim suction
  • Pneumatic conveying
  • Spa air agitation
  • Dental suction
  • Vacuum conveying
  • Textile yarn suction



SL.NO



BLOWER DESCRIPTION



TECHNICAL DATA

1

MODEL



1B

2

KW / HP

0.75 / 1

3

VOLTAGE / PHASE

230 V

4

SPEED

2880 rpm

5

STAGE

DOUBLE

6

INLET DIA / OUTLET DIA

38 mm

38 mm

7

CURRENT RATING

4.8 amps

8

VACUUM INLET / OUTLET



25.4 kpa

9

PRESSURE INLET / OUTLET



254 mbar

10

VELOCITY INLET / OUTLET



21.5 m/s

11

AIRFLOW INLET / OUTLET



88 m3/hr

12

NOISE LEVEL

73.4 dba

13

OVERALL SIZE (inches)

13”  × 13” × 11” (L× W× H)

14

WEIGHT

17.200 kg

Double stage ring blower

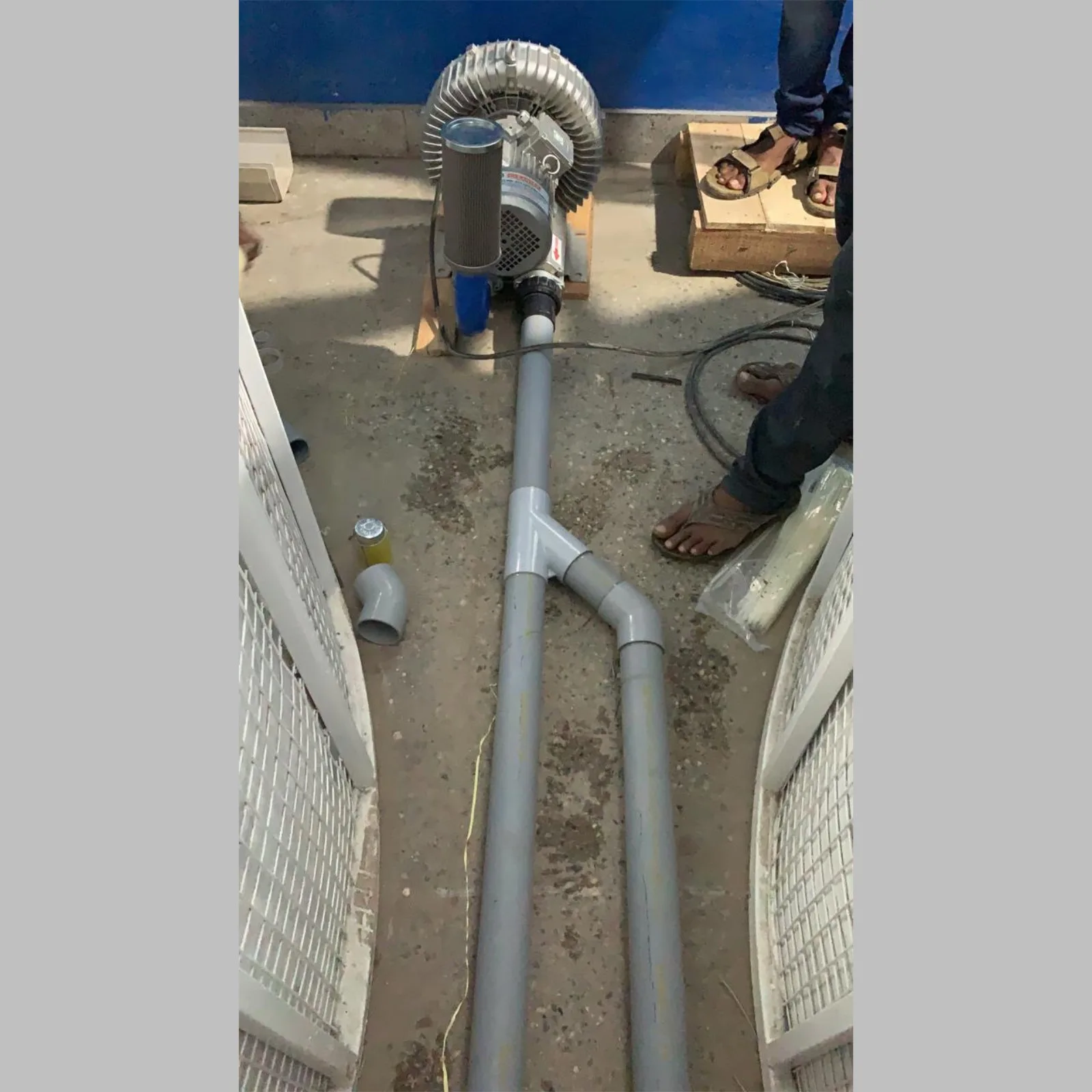

Double stage ring blower Image
Double stage ring blower

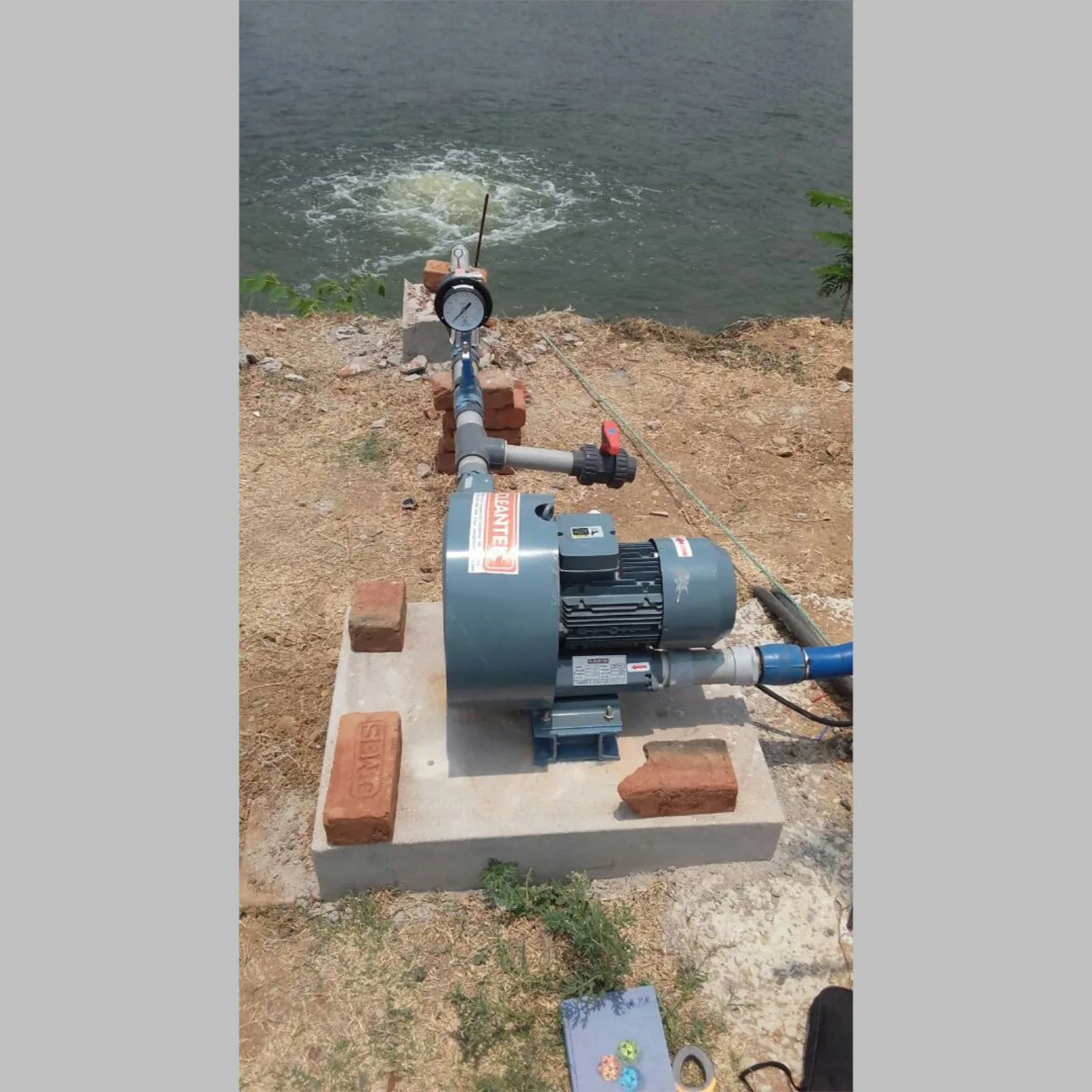

Double stage ring blower Image
