FE300 Welding Fume Extractor

FE300 Welding Fume Extractor

₹ 1,50,000.00 (* Price depends on Variant and features and subjected to change based on requirements)
  • Model Number:

  • FE300
  • Make:

  • India
  • User Ratings:

  • 4.7 (in 133 reviews)
Cleantek design and manufacturing Welding Fume Extractor machines in various capacity. Our machine can Filter and purify the hazardous welding fume up-to 99 % and circulate the pure air.

Welding Fume Extractor manufacturers:



Cleantek is high quality welding fume extractor manufacturers in Coimbatore, India and distribute all over India and overseas countries.  Welding fumes are a hazardous contents of gases and particles.These are breathed in through the mouth and nose of workers in shop floor. World Health Organization point out lung cancer is caused by this welding fumes.Also gases in welding fumes present further risks to workers health.Very micro substances of welding dust and fume which can injure the respiratory tract, trigger asthma, suffocation, cancer risk etc.



Welding Fume Extractor used with suction arm to collect dust particles and fumes from welding process.So welding fume Extraction or exhaust is mandatory for all kind of welding and other kind of welding process.

  • DESCRIPTION
  • INFORMATION
  • Product Video
  • Technical Specifications
  • Installation Images
  • CASE STUDY
  • FAQ

Portable welding Fume Extractor manufacturers and Exporters:



A welding fume extractor is a device designed to remove harmful fumes, gases, and particulates generated during welding processes. When metals are welded, heated, and fused together, they produce fumes that contain various hazardous substances, including metal oxides, gases, and other potentially toxic elements. Welding fumes are a hazardous contents of gases and particles. These are breathed in through the mouth and nose of workers in shop floor. Welding smoke extraction arm capture the smoke easily due to the 360 degree rotating design.



Effects of welding Fume:



  • Chronic lung problems (bronchitis, pneumonia, asthma, emphysema, silicosis)
  • Lung cancer
  • Cancer of the larynx
  • Cancer of the urinary tract
  • Other health problems that may be related to welding fumes are:
  • Skin diseases
  • Hearing loss
  • Gastritis, ulcers of the stomach
  • Kidney damage
  • Heart disease

Welding Fume Extractor Image

The extractor works by suck the contaminated air and passing it through filters or other purification systems to capture and remove the fumes and particles. It helps in maintaining a cleaner and safer work environment by reducing the risk of inhaling hazardous fumes, thus protecting the health of welders and other personnel in the vicinity.



Factors that affect worker exposure to welding fume:



  • Type of welding process
  • Base metal and filler metals used
  • Welding rod composition
  • Location (outside, enclosed space)
  • Welder work practices
  • Air movement
  • Use of ventilation controls


The use of a welding fume extractor is crucial in various industries where welding is a common practice, such as manufacturing, construction, automotive, and metalworking. It aids in compliance with occupational health and safety regulations by minimizing exposure to harmful welding fumes, promoting better air quality, and safeguarding the well-being of workers.


Discover the convenience of our cleantek portable welding fume extractor. Compact yet powerful, our extraction system ensures a safer work environment by effectively removing harmful fumes and particulates. Easy to maneuver and designed for efficiency, it offers unmatched versatility for welding projects of any scale. Explore reliable fume extraction on the go.



Cleantek design and manufacturing Welding fume extraction,Fume extractor systems,Welding ventilation solutions,Industrial air filtration,Welding smoke removal,Fume extraction equipment,Welding shop air quality,Welding fume control,Exhaust systems for welding,Fume elimination in welding etc….



Features

  • Easy to move one place to another place.
  • Suitable for continuous working without any trouble. CE approved induction motor for energy efficiency.
  • High rate of suction airflow and purifying efficiency is more than 99.9 % and pure air is discharge to workshop atmosphere.
  • Electronic panel board for  Filter cleaning stage  warning.
  • Spark arrester, Multi stage filters and Electrostatic filter is easy to clean.
  • Our Mobile soldering Fume Extractor helps to maintain pollution free atmosphere in work place.

Benefits

  • Improved Air Quality: Effectively removes welding fumes and contaminants, creating a cleaner and healthier work environment.
  • Enhanced Safety: Reduces the risk of fire and explosion hazards associated with accumulated fumes.
  • Increased Productivity: A cleaner environment can lead to improved worker morale and productivity.
  • Compliance with Regulations: Helps workplaces comply with regulations regarding air quality and welder safety.


Welding fumes can pose significant health risks to individuals who are exposed to them. These fumes are a complex mixture of metal oxides, gases, and particles that are generated during the welding process. The specific health risks associated with welding fumes can vary depending on the type of welding, the materials being welded, and the conditions under which the welding is performed. Employers and workers should be aware of the specific hazards associated with the welding processes and materials they work with and take the necessary precautions to protect their health and safety.

SN

Parameters

Welding Fume Extarctor MODEL FE300E

1

Motor Power

2.2 Kw

2

Airflow

2200 m3/Hr

3

Vacuum

200 mm of Wg

4

Filtration Stage

  1. Spark Arrester
  2. Pre filter
  3. Electrostatic Precipitator
  4. Activated carbon filter
  5. HEPA Filter ( Optional)

5

Version

Portable model with brake wheels

6

Suction Arm Diameter

Dia 150 mm

7

Filtration efficiency

99 %

8

Insulation class

9

Motor protection

 IP 55

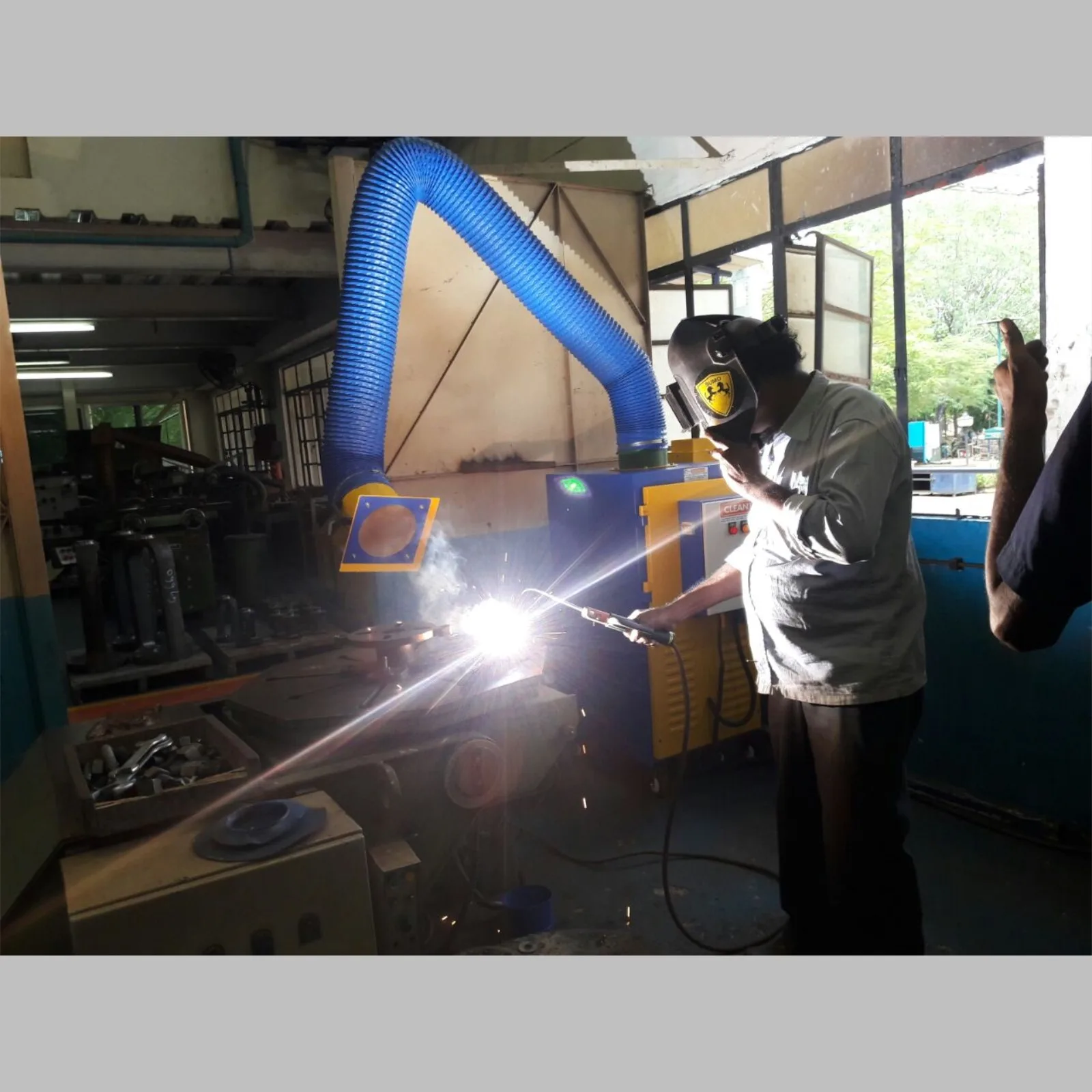

FE300 Welding Fume Extractor
FE300 Welding Fume Extractor Image

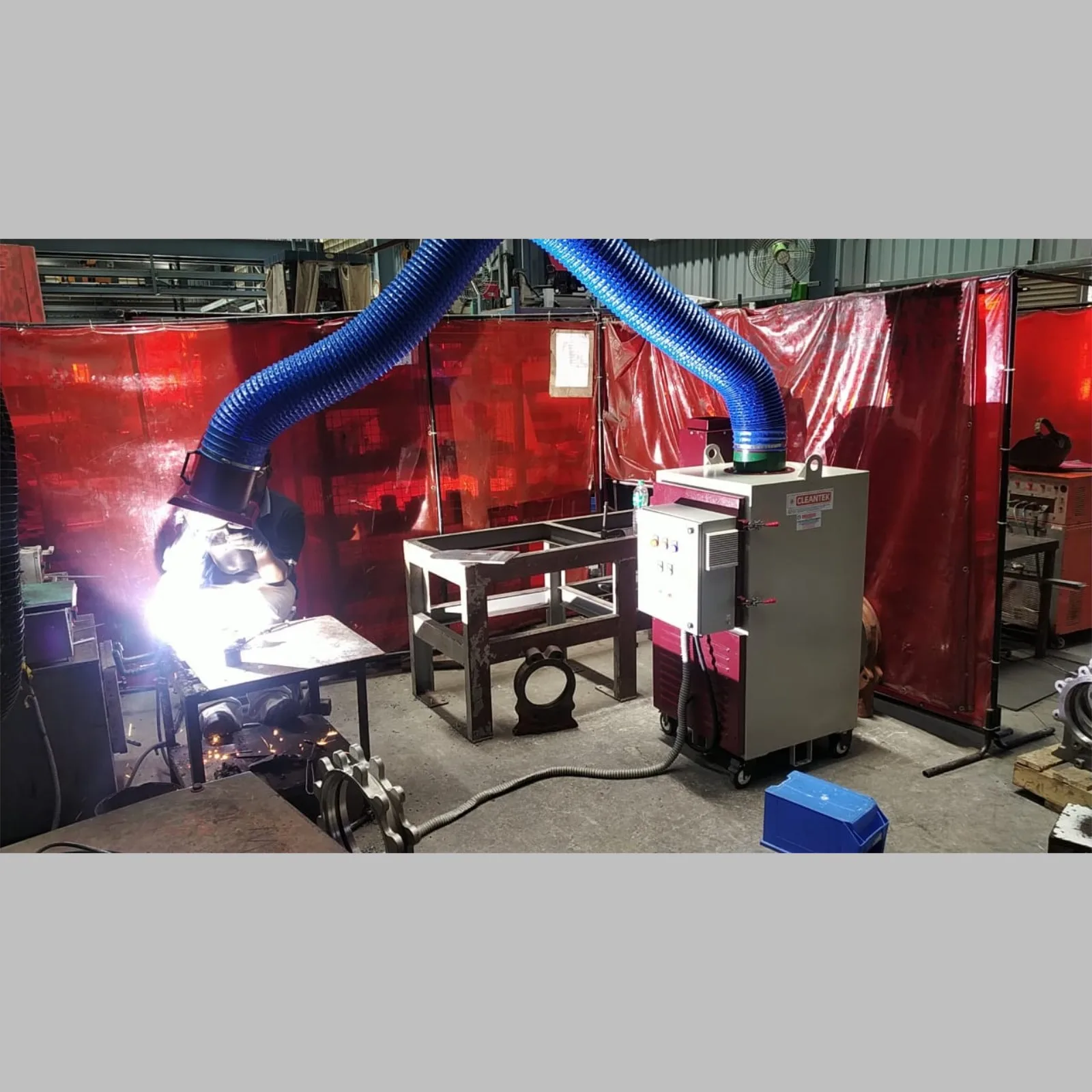

FE300 Welding Fume Extractor
FE300 Welding Fume Extractor Image

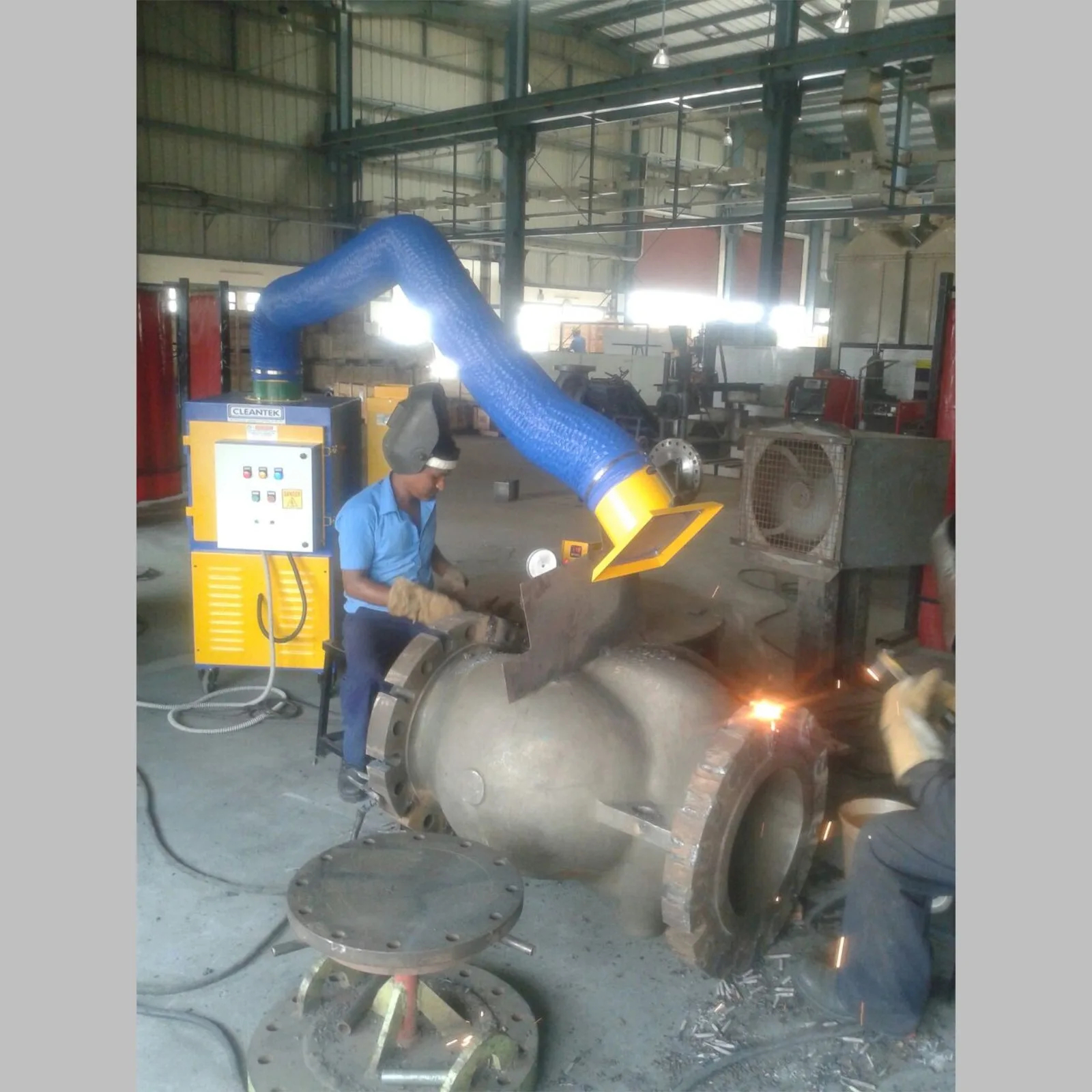

FE300 Welding Fume Extractor
FE300 Welding Fume Extractor Image
