What is a Centralized Welding Fume Extractor?

It is a centralized air pollution control system designed to extract and filter hazardous welding fumes from multiple welding stations through a common ducting network and filtration unit.

How many welding stations can be connected to a Cleantek Centralized Fume Extractor?

Cleantek systems can be customized to handle from 4 to 20+ suction points depending on your shop layout and air volume requirements.

What type of filters are used in the system?

The system uses multi-stage filtration, including a pre-filter, cartridge filter (with PTFE coating), and an optional HEPA filter for ultrafine particles. Cartridge filters are self-cleaning with a pulse jet mechanism.

What is the filtration efficiency of the system?

The filtration efficiency is ≥ 99.9% for particles ≥ 0.3 microns, ensuring clean and safe indoor air quality.

How is the system cleaned or maintained?

The cartridge filters are cleaned automatically using a pulse jet cleaning system controlled by a timer or differential pressure sensor. Dust is collected in an easy-to-empty bin or rotary discharge valve.

What type of ducting and arms are used for fume capture?

The system uses GI or powder-coated ducts along with flexible articulated suction arms with 360° rotation for efficient fume capture directly at the source.

Is it suitable for continuous-duty operation?

Yes. Cleantek systems are equipped with industrial-grade centrifugal blowers designed for continuous-duty operation.

Does this system comply with safety standards?

Yes. The system is designed to meet OSHA, ISO, and local environmental standards for fume extraction and air quality.

Can it be customized for robotic or automated welding setups?

Absolutely. Cleantek provides tailor-made solutions for robotic welding cells and automation lines with synchronized suction and filtration control.

What are the benefits of using a centralized system over portable fume extractors?

Using a centralized welding fume extraction system offers several key advantages over portable fume extractors, especially in medium to large-scale fabrication or welding facilities. A centralized system can serve multiple welding stations simultaneously through a network of suction ducts and arms, eliminating the need for individual units at each station. This not only reduces equipment clutter on the shop floor but also simplifies maintenance, as there is only one set of filters and one central blower system to manage. In terms of performance, centralized systems provide consistent and powerful suction, ensuring effective fume capture directly at the source, which improves air quality and worker safety. They are also more energy-efficient in the long run, as a single high-capacity system is often more economical than operating multiple smaller units. Furthermore, centralized systems offer cleaner aesthetics, easier automation and control, and lower total cost of ownership, making them ideal for workshops aiming for long-term reliability and compliance with air quality standards.

Centralized Welding Fume Extractor

Category:
centralised-fume-extractors

HSN Code:
84219900

Model Number:
CWFE1000

Make:
India

User Ratings:
4.4 (in 89 reviews)

Download

Request Quote Call Sales WhatsApp

✓ No Login Required • ✓ Response within 24 hours • ✓ 20+ Years of Experience

☆ ☆ ☆ ☆ ☆

Cleantek offers a centralized welding fume extractor system designed to efficiently capture and remove fumes from multiple welding stations within a facility.

Cleantek centralized welding fume extraction system Equipped with powerful fans and motors, the system ensures optimal airflow, effectively capturing fumes directly at the source. Adjustable suction capacities allow customization according to the specific needs of different welding processes and environments.

Cleantek offers scalable solutions that can be tailored to the size and specific needs of any facility. Whether it’s a small workshop or a large industrial plant, the system can be customized to provide optimal fume extraction.Constructed with high-quality materials and components, Cleantek’s fume extraction system is durable and requires minimal maintenance.

Automatic filter cleaning mechanisms and easy access points for manual maintenance further enhance its operational longevity.Cleantek multi-stage filtration process ensures that even the smallest and most harmful particles are captured.

DESCRIPTION
INFORMATION
Product Video
Technical Specifications

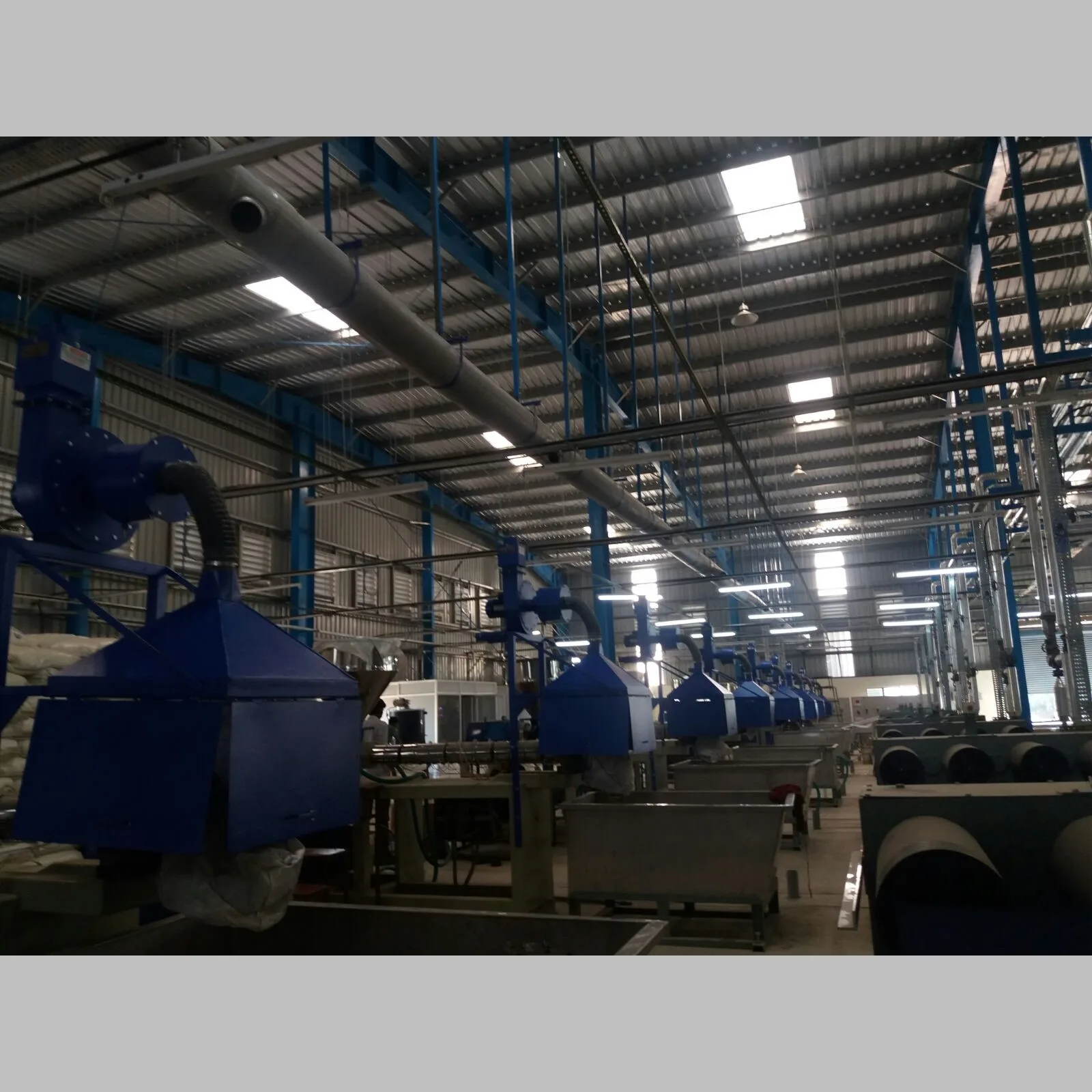

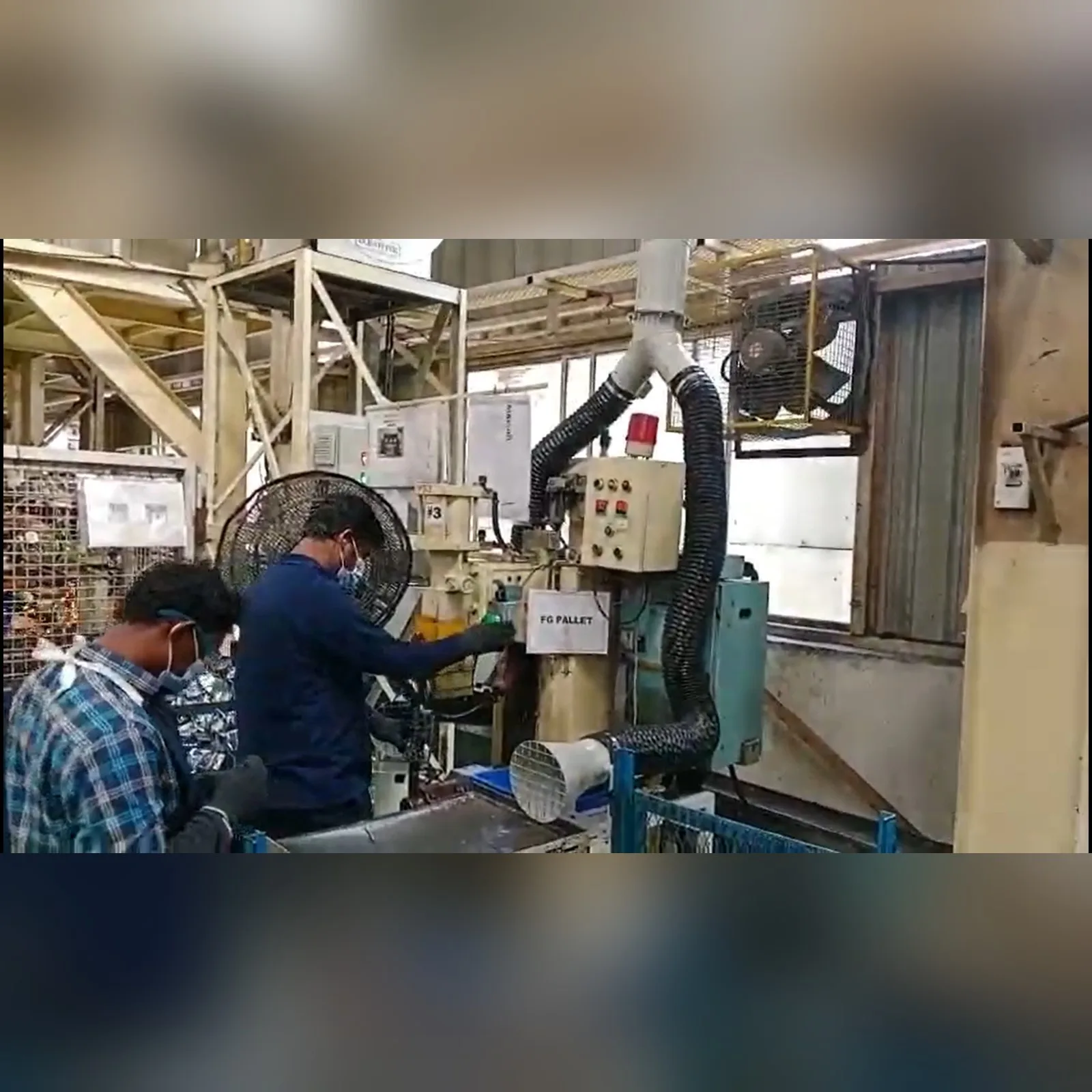

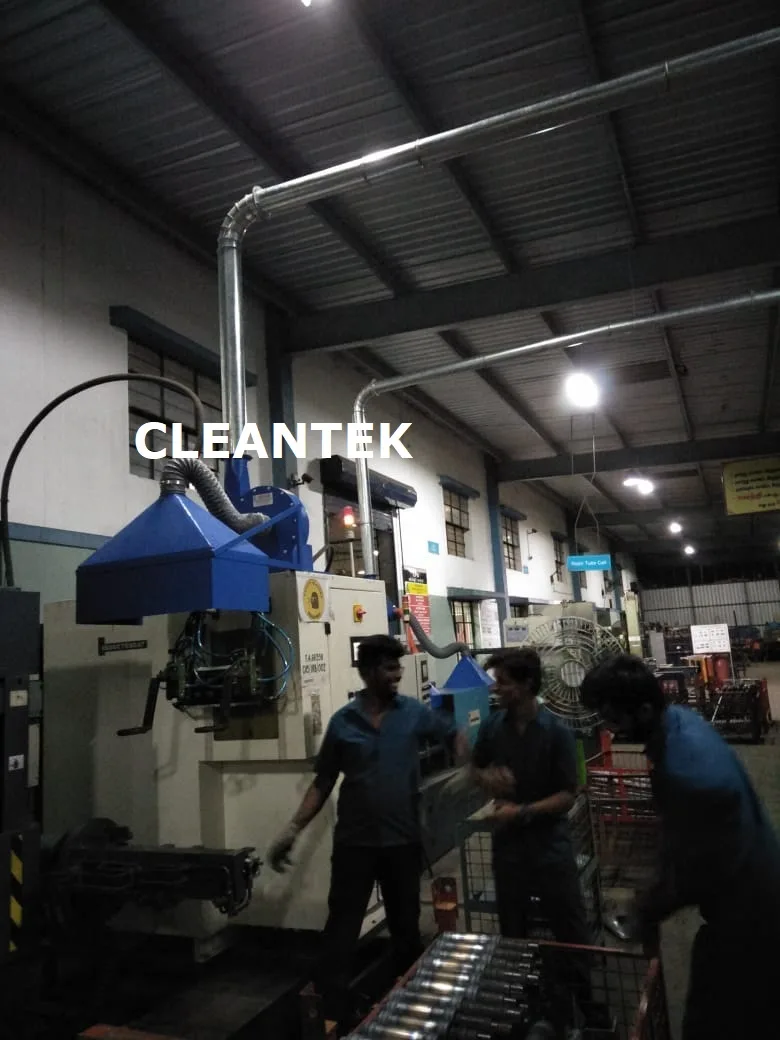

Installation Images
CASE STUDY
FAQ

Centralized Fume Extractor Manufacturers:

Cleantek centralized fume extractor is centrally located within the facility and connected to multiple workstations through a network of ducts or hoses. This centralized setup allows for efficient extraction of fumes from various points simultaneously.It is equipped with multiple extraction points strategically placed around the workspace to capture fumes directly at the source, ensuring thorough ventilation and minimizing exposure to harmful particles.

These systems are designed to have high extraction efficiency, effectively capturing and removing welding fumes, dust, and other airborne contaminants from the workplace environment. Our cleantek multipoint centralized welding fume extractors offer variable speed control, allowing operators to adjust the extraction rate based on the specific welding processes being performed and the level of fume generation.

This system typically feature advanced filtration systems, such as high-efficiency particulate air (HEPA) filters or activated carbon filters, to effectively remove fine particles, gases, and odors from the extracted air before recirculating it back into the workspace or venting it outside.

Features

Centralized Location: The extractor unit is positioned in a central location within the workspace.
Ducted Network: A network of ducts or hoses connects the extractor to multiple workstations.
Strategic Extraction Points: Extraction arms are strategically placed around the workspace to capture fumes directly at the source.
Variable Speed Control: Allows for adjusting the extraction rate based on the welding process and fume generation.
Advanced Filtration System: Typically includes HEPA filters or activated carbon filters to remove fine particles, gases, and odors.
Recirculation or Venting: The cleaned air can be recirculated back into the workspace or vented outside.

Benefits

Benefits of Centralized Fume Extractor System:

Improved Air Quality: By efficiently capturing and removing welding fumes and airborne contaminants, multipoint centralized extractors help maintain a clean and healthy work environment, reducing the risk of respiratory problems and other health issues associated with prolonged exposure to welding fumes.
Enhanced Safety: These systems contribute to a safer workplace by minimizing the risk of fire and explosion hazards associated with the accumulation of combustible dust and fumes.
Increased Productivity: By providing a cleaner and healthier work environment, multipoint centralized extraction systems can help improve worker productivity and morale, leading to better overall efficiency and performance.
Compliance with Regulations: Employing effective fume extraction systems helps businesses comply with occupational health and safety regulations and standards related to air quality and worker protection.
Cost Savings: While initial installation costs may be higher compared to individual extraction systems, centralized systems offer long-term cost savings through reduced energy consumption, lower maintenance requirements, and improved operational efficiency.

Welding processes generate hazardous fumes and gases that can pose significant health risks to workers and lead to environmental contamination. Addressing this issue, Cleantek has developed an advanced Centralized Welding Fume Extraction System designed to effectively capture and filter these pollutants, ensuring a safer and cleaner working environment.

The centralized system is engineered to serve multiple welding stations simultaneously. This design is not only more efficient but also cost-effective, as it reduces the need for individual extraction units at each station. Ductwork connects the welding stations to a central extraction unit, facilitating the smooth removal of fumes.

Cleantek Centralized Welding Fume Extraction System represents a comprehensive solution for managing welding fumes, blending cutting-edge technology with practical design. By prioritizing efficiency, safety, and environmental responsibility, Cleantek helps industries maintain healthier workspaces and comply with regulatory standards. This system not only protects workers’ health but also contributes to overall operational efficiency and sustainability.

Parameter	CLEANTEK Centralized Fume Extractor Specification
Model	Cleantek CFE-Central 3000
Airflow Capacity	3000 ??" 10000 m³/hr (customizable as per application)
Filtration System	Multi-stage: Pre-filter, Fine Filter, Cartridge Filter with Auto Cleaning
Filter Type	German Designed Pleated Cartridge Filter with PTFE coating
Filter Efficiency	≥ 99.9% @ 0.3 microns
Dust Discharge	Automatic Dust Collection Bin / Manual Drawer / Rotary Valve
Motor Power	3 HP to 15 HP (depends on number of your suction points)
Blower Type	Direct Drive / Belt Drive Centrifugal Blower
Noise Level	≤ 75 dB(A) @ 1 meter distance
Suction Points	4 ??" 20 Points (Flexible Articulated Arms / Suction Hoods)
Ducting	GI / Powder Coated / SS duct with clamp or flange connection
Automatic Filter Cleaning	Pulse Jet Cleaning System with Timer / Differential Pressure Based
Control Panel	PLC Based with indicators, start/stop, emergency & cleaning cycle control
Mounting Type	Floor Standing / Skid Mounted
Application Area	Welding Shops, Fabrication Units, Automotive Welding Lines, Heavy Engineering
Construction Material	Mild Steel (Powder Coated) / Optional Stainless Steel
Optional Features	HEPA Filter, Fume Arm Lights, VFD for blower speed control, Spark Arrestor
Power Supply	3 Phase, 415 V, 50 Hz
Compliance	Designed to meet OSHA and ISO air quality standards
