Downdraft Dust Collector

Downdraft Dust Collector

₹ 1,75,000.00 (* Price depends on Variant and features and subjected to change based on requirements)

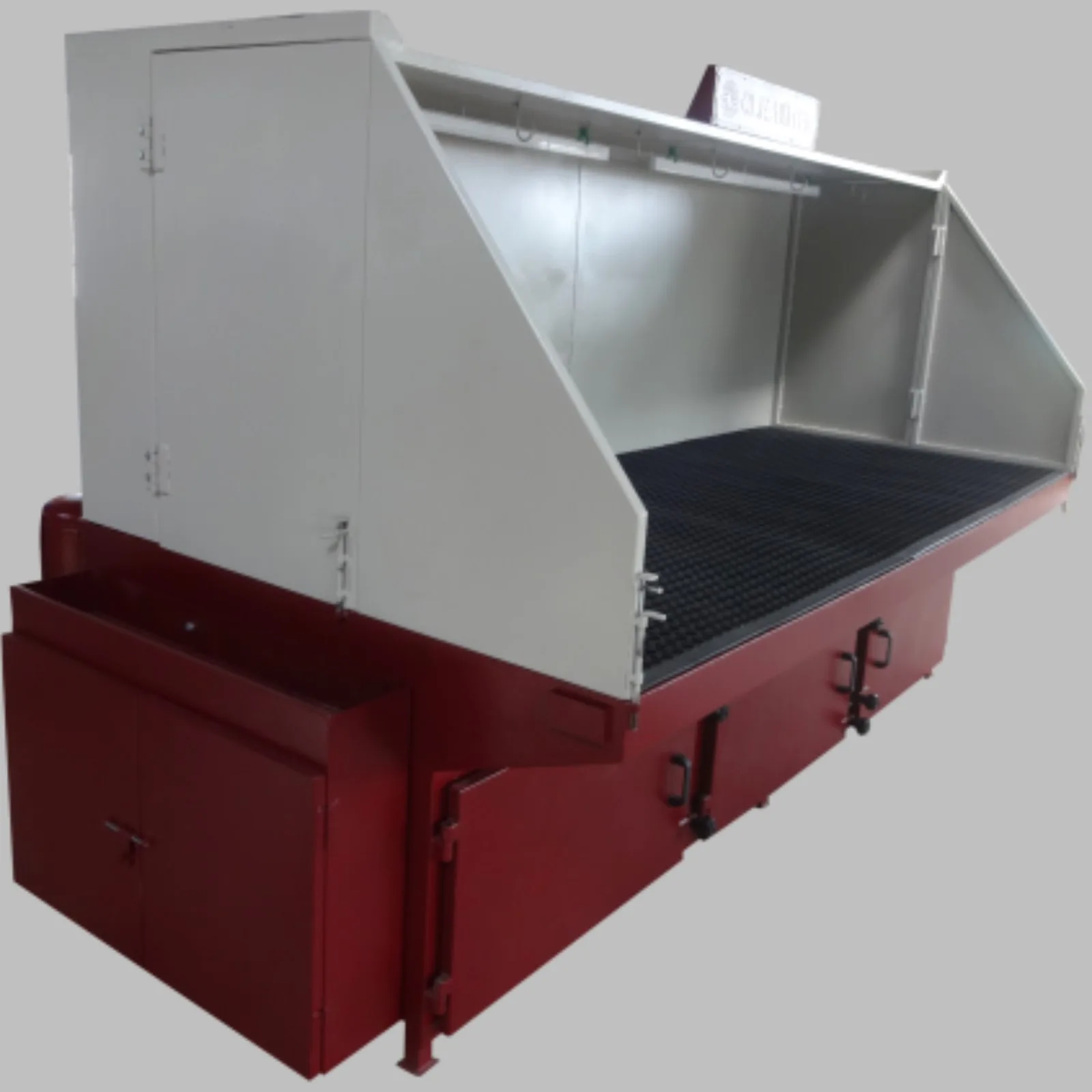

  • Model Number:

  • DDT300
  • Make:

  • India
  • User Ratings:

  • 4.4 (in 176 reviews)
We design and supply Downdraft Table & Booth Manufacturer, Downdraft Table Dust Collectors,compact-down-draught-benches,Downdraft Table Dust Collector,Downdraft Table Dust Collector, Welding Downdraft

We design and supply Downdraft Table & Booth Manufacturer, Downdraft Table Dust Collectors,compact-down-draught-benches,Downdraft Table Dust Collector,Downdraft Table Dust Collector, Welding Downdraft Table, Economy Downdraft tables.

  • DESCRIPTION
  • INFORMATION
  • Product Video
  • Technical Specifications
  • Installation Images
  • CASE STUDY
  • FAQ

Downdraft Dust Collector Manufacturers:



Downdraft dust collector Booths is a Air filtration system to filter the airborne particles. This is the effective system to capture the harmful dust threw the cartridge filters. These filters are cleaned with auto filter cleaning system. This stationary, self-contained downdraft table collects all dust, smoke and fume directly through the perforated table top.



The fume dust extraction filter table is an affordable combination of working table and fume, dust filter unit. The special kind of fume extraction downdraft tables designed and manufactured by CLEANTEK are used in laser, plasma and oxy-fuel cutting machines.During sheet metal cutting process the fumes and dusts that are suctioned from special ducting design.



Also this table used for grining and deburring station.Downdraft table is manufactured with suction unit with auto filter cleaning system. All Sucked dust are filtered threw the cartridge filter and pure air exhaust to atmosphere.Downdraft Table is used to extract the Dust, fume, Woodworking Dust, Sander Dust, Grinding Dust, Welding Fume etc...



This machine is helps to keep the atmosphere pollution free environment and safety for workers. We are the Metalworking Downdraft Table Manufacturers for grinding,deburring and buffing Dust Collection applications.



Cleantek manufacturing grinding and cutting dust collection system in compact size for individual machines. During grinding and cutting lot of fine metal dust produced with hot fire spark and it is very dangerous to workers and factory floor. Cleantek high quality dust extraction system assure 100 % safe working for this kind of machine.Our machines are used in bench grinders, polishing machines,Belt grinders, etc..



Cleantek manufacturing dust collector with suction hoods, shrouds , custom made ductings etc.. suitable for client applications.Cleantek is one of the dust collector manufacturers in Chennai. We manufacturing grinding, Polishing, Deburring and cutting dust collection system in compact size for individual machines. Cleantek supply dust collector with suction hoods, shrouds , custom made ducting's etc.. suitable for client applications.


Features

  • Energy Efficient IE2 Induction motor mounted version.
  • IP55 Protection motor with copper winding
  • Digitally balanced Impeller Fan mounted high airflow suction unit.
  • Minimized fire risk due to effective spark arrester.

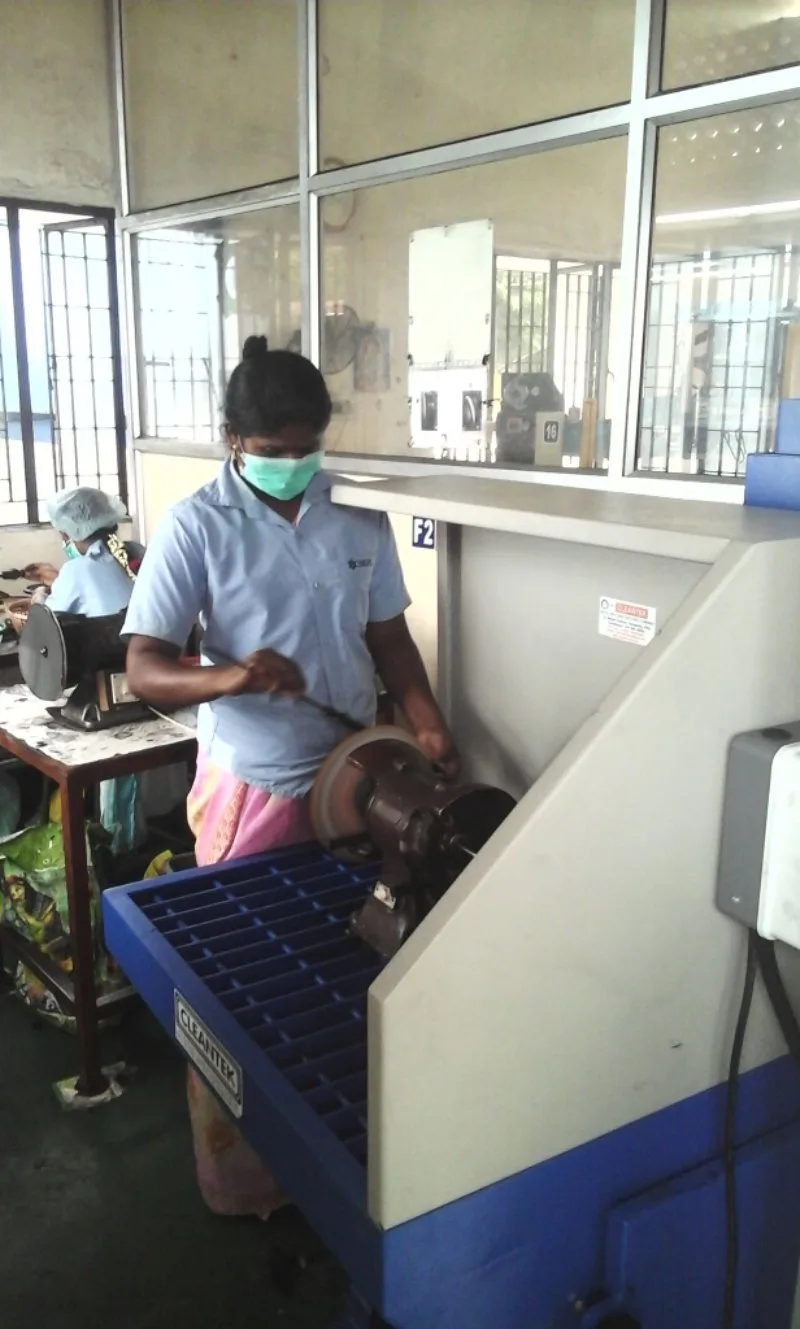

Rubber grinding dust collection
  • Downdraft extraction throughout the whole working area.
  • Large working area of as per customer requirements
  • Large, robust material support with epoxy powder coated model.
  • Additional compressor tank for automatic pulse cleaning system.
  • Maintenance door allows easy filter change.
  • Low Noise Level
  • Three phase electrical control panel with digital timer controller
  • Tool box with locking arrangement.
  • Set of accessories and clamps, locking tools
  • High Quality Automatic pulse valve assure automatic back pulse blowing cleaning way, can ensure that the equipment is always in good working condition.
  • A guide plate is arranged at the inlet to prevent dust impact filter directly, so as to prolong the service life of the filter core. Easy to clean the dust tray Compact structure, small occupation area

Benefits

Cleantek Downdraft tables offer several benefits in industrial settings where dust, fumes, and other airborne contaminants are generated.



Effective Containment: Downdraft tables provide localized ventilation directly at the source of contamination. The downward airflow pattern effectively captures and contains dust, fumes, and other airborne particles, preventing their dispersion into the surrounding work environment.



Improved Air Quality: By capturing contaminants at the source, downdraft tables help maintain cleaner and healthier indoor air quality. This is particularly important in industrial settings where exposure to airborne pollutants can lead to respiratory issues, allergies, and other health problems among workers.

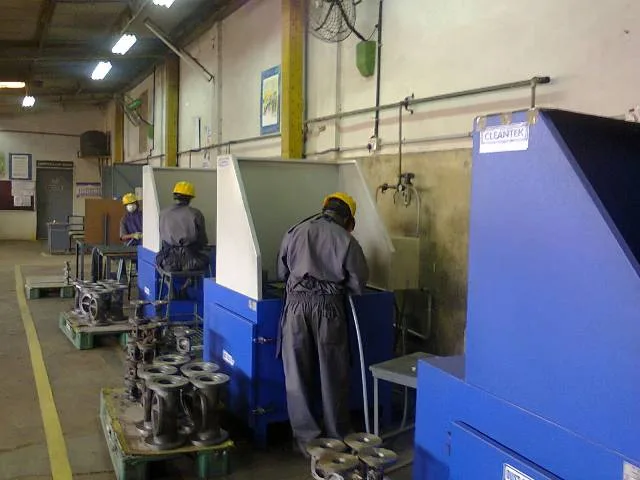

Grinding dust collection

Worker Safety: Implementing downdraft tables enhances workplace safety by reducing the risk of exposure to hazardous substances. By removing airborne contaminants from the breathing zone of workers, downdraft tables help minimize the potential for occupational illnesses and injuries.



Compliance with Regulations: Many industries are subject to regulations and standards related to indoor air quality and occupational health and safety. Downdraft tables help businesses comply with these regulations by effectively controlling airborne contaminants and ensuring that exposure levels are within permissible limits.



Increased Productivity: Cleaner and healthier work environments contribute to improved worker productivity. By reducing the risk of respiratory issues and other health problems associated with exposure to airborne contaminants, downdraft tables help employees stay focused, energetic, and engaged in their work.



Protection of Equipment: In addition to protecting workers, downdraft tables can also help safeguard machinery and equipment from damage caused by dust and other airborne particles. By capturing contaminants before they settle on equipment surfaces, downdraft tables help prevent equipment malfunctions, downtime, and maintenance issues.



Versatility: Downdraft tables are available in a variety of configurations and sizes to accommodate different types of workpieces and applications. They can be customized with various work surface materials, filtration options, and accessories to meet the specific needs of different industries and manufacturing processes.



Cleantek downdraft tables play a crucial role in promoting a safe, healthy, and productive work environment in industrial settings by effectively controlling airborne contaminants and improving indoor air quality.

A Cleantek downdraft table is a type of workstation designed for industrial applications, particularly in environments where there is a need to capture and remove dust, fumes, and other airborne contaminants generated during various manufacturing processes.



Design: A Cleantek downdraft table typically consists of a work surface with built-in ventilation, surrounded by a perimeter or enclosure. The work surface is perforated or slotted to allow air to be drawn downward through the table.



Ventilation System: Beneath the work surface, there is a ventilation system that includes one or more fans or blowers. These fans create a downward airflow pattern, pulling contaminants generated during the manufacturing process through the perforated or slotted surface and into the table.

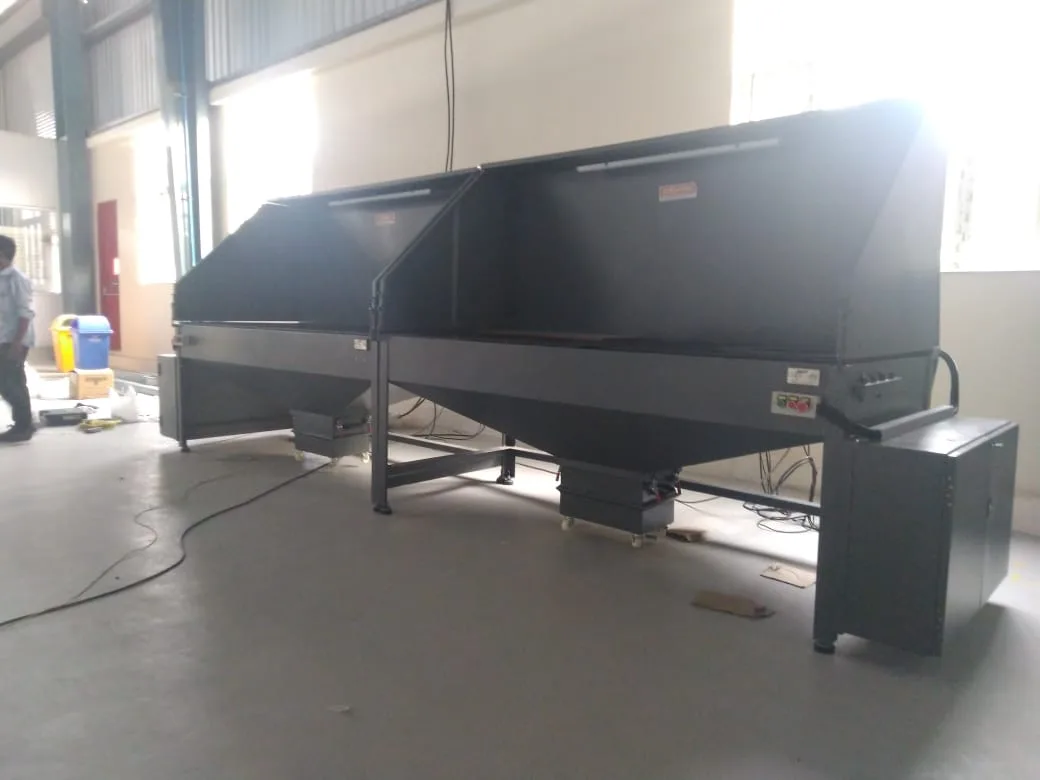

Centralized downdraft dust collector

Filtration: As the contaminated air is drawn downward through the downdraft table, it passes through one or more filtration stages. These filters are designed to capture and remove particles, dust, fumes, and other airborne contaminants from the air stream. Depending on the specific application and the types of contaminants involved, the filtration system may include various types of filters, such as HEPA filters, activated carbon filters, or specialty filters tailored to specific contaminants.



Capture Efficiency: Cleantek downdraft tables are designed to provide efficient capture and containment of airborne contaminants directly at the source, minimizing the dispersion of pollutants into the surrounding environment. This helps maintain a cleaner and healthier work environment for operators and reduces the risk of exposure to hazardous substances.



Versatility: Downdraft tables from Cleantek are often customizable to meet the specific requirements of different manufacturing processes and industries. They can be configured with various work surface materials, sizes, and ventilation options to accommodate different types of workpieces and applications.



Efficient Downdraft Table Dust Collector | Cleantek's Superior Dust Control Solution




Introducing Cleantek's Downdraft Table Dust Collector, designed to provide efficient dust collection and a cleaner workspace. Our advanced downdraft table system is perfect for capturing dust, fumes, and particles generated during various industrial processes, including sanding, grinding, welding, and cutting. Engineered for exceptional performance and reliability, Cleantek's Downdraft Table Dust Collector enhances air quality, ensuring a safer and more productive work environment.



Features and Benefits:



Powerful Dust Collection: Equipped with a high-performance motor and advanced filtration system to capture fine dust and fumes effectively.
Durable Construction: Built with robust materials to withstand the rigors of industrial use, ensuring long-lasting performance.
Enhanced Air Quality: Helps maintain a clean and safe workspace by effectively removing airborne contaminants and particles.
User-Friendly Design: Ergonomically designed for ease of use, with a spacious work surface and minimal maintenance requirements.
Versatility: Suitable for a wide range of industrial applications, including woodworking, metalworking, and manufacturing processes.
Compliance: Meets industry standards for dust control, contributing to a healthier and more compliant work environment.


Experience the superior dust control and efficiency of Cleantek's Downdraft Table Dust Collector. For more information and to place an order, visit Cleantek website today!



Applications: Cleantek downdraft tables are commonly used in a wide range of industries, including metalworking, woodworking, fabrication, machining, electronics manufacturing, and pharmaceutical production, among others. They are particularly beneficial in processes where dust, fumes, or other airborne contaminants are generated and need to be controlled to maintain a safe and clean working environment.



Cleantek downdraft tables play a crucial role in industrial hygiene and safety by effectively capturing and removing airborne contaminants, helping to protect workers' health and ensuring compliance with environmental regulations.

SN

Parameters

MODEL DDT300

MODEL DDT500

1

Motor Power

2.2 Kw

3.7 Kw

2

Free Airflow

5000 m3 / Hr

8000 m3 / Hr

3

RPM

1440

1440

4

Vacuum

200 mm of Wg

200 mm of Wg

5

Filtration

Catridge filter- 2 Nos

Catridge filter – 4 Nos



Filter Media

German Made

German Made

6

Filter cleaning

Automatic By compressed air pulse

Automatic By compressed air pulse

7

Version

Stationary Model

Stationary Model

8

Suction Table size

As per requirement

As per requirement

9

Filtration efficiency

99 %

99 %

10

Insulation class

F

F

11

Motor protection

IP 55

IP 55

12

Current Draw Max Amps

5 A

8 A

13

Working Area

1000 X 800 X 1000  mm  L X W X H

2500 X 800 X 1000 mm

L X W X H

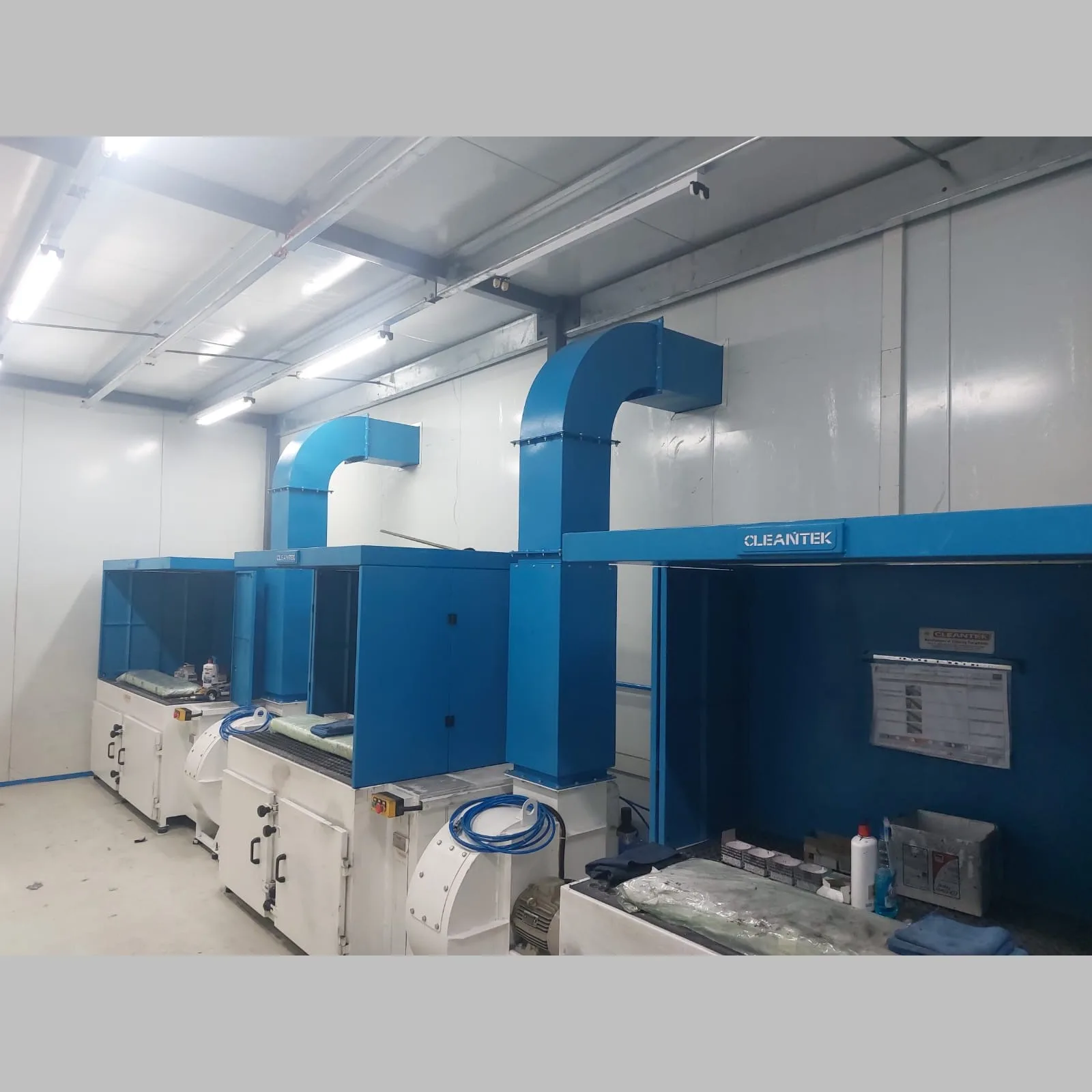

Downdraft Dust Collector
