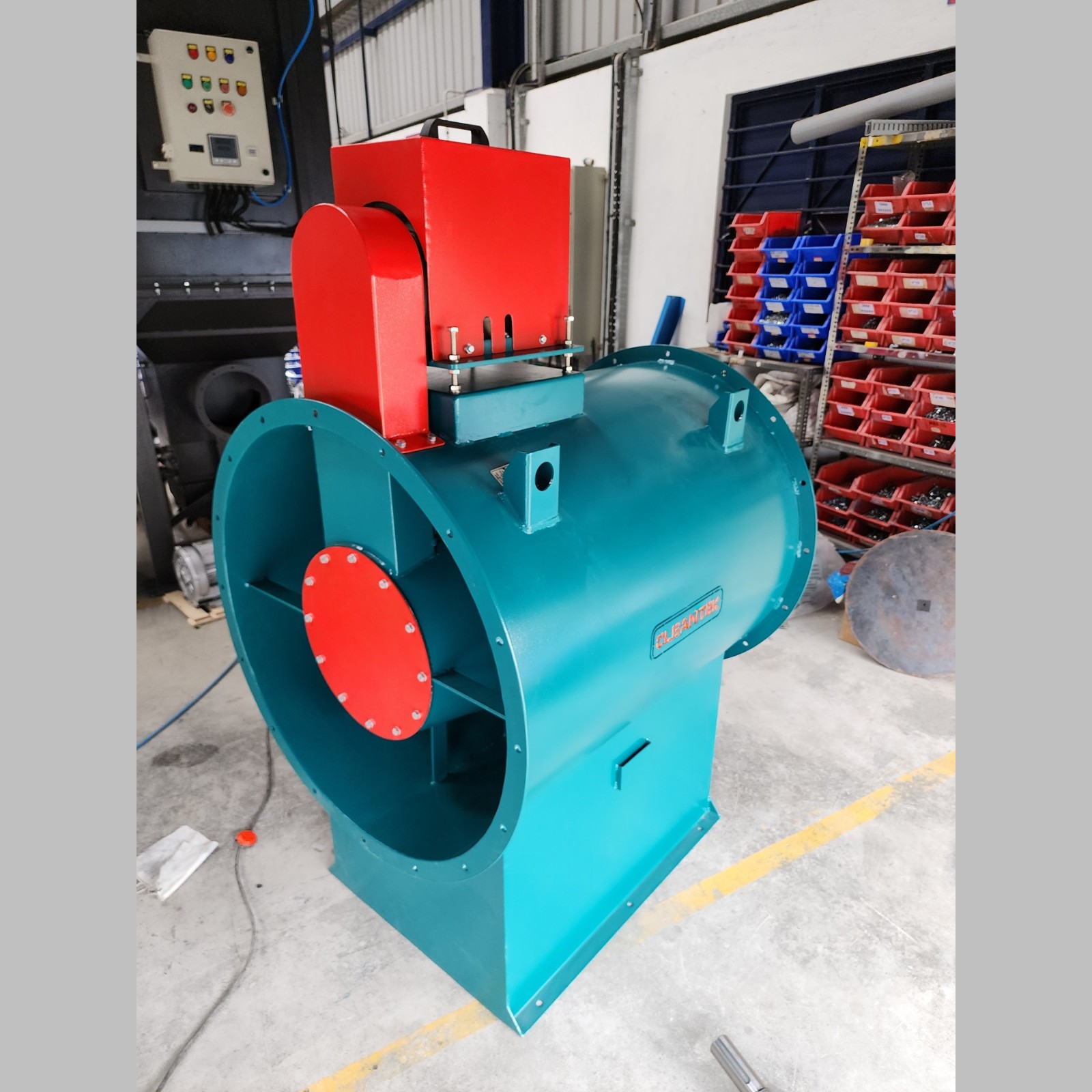

Belt Driven Tube Axial Fans

₹ 1,10,700.00 (* Price depends on Variant and features and subjected to change based on requirements)

  • Model Number:

  • BDTAXF300
  • Make:

  • India
  • User Ratings:

  • 4.7 (in 148 reviews)
Download Buy Now
☆ ☆ ☆ ☆ ☆
Cleantek Belt Driven Tube Axial Fans deliver powerful airflow up to 54,000 CFM with aerodynamically efficient aluminum impellers and rugged steel housing. Designed for industrial ventilation, process

Cleantek Belt Driven Tube Axial Fans are designed for industrial ventilation with airflow capacities up to 50,000 CFM. Built with heavy-duty welded steel housing and spark-resistant impellers, they ensure reliable performance in process exhaust, moisture-laden, and contaminated air applications.

  • DESCRIPTION
  • INFORMATION
  • Product Video
  • Technical Specifications
  • Installation Images
  • CASE STUDY
  • FAQ

Cleantek manufactures high-performance Belt Driven Tube Axial Fans designed to deliver reliable ventilation solutions for industrial environments. Engineered with aerodynamically efficient designs, these fans are available in diameters ranging from 12″ to 60″ with airflow capacities up to 54,000 CFM.

The rugged AIB fan housing is constructed of heavy-duty welded steel with angle ring flanges, ensuring durability and long service life even in demanding applications. These fans are ideal for process ventilation, general ventilation, handling moisture-laden air, and contaminated air streams across industries.



Features

  • Spark-resistant cast aluminum airfoil impeller for safe and efficient operation
  • Heavy-duty welded steel housing with angle ring construction for durability
  • Baked polyester powder coat finish for corrosion resistance
  • Flexible installation – mountable in ductwork in any position
  • Factory set adjustable pitch blades for optimized performance
  • TEFC industrial duty motor located outside the airstream for safety
  • Self-aligning pillow block ball bearings for smooth operation
  • V-belt drives for efficient low-speed operation
  • Protective belt tube to shield sheaves and belts from airflow
  • Extended lube lines for easy maintenance
  • Shaft seal & water slinger for enhanced reliability

Benefits

  • High Airflow Capacity – Delivers up to 50,000 CFM, ideal for large industrial spaces.
  • Flexible Speed Control – Belt drive allows easy adjustment of fan speed for optimized performance.
  • Motor Protection – Motor is located outside the airstream, ensuring safety when handling moisture-laden or contaminated air.
  • Durability – Built with heavy-duty welded steel housing and spark-resistant impellers for long service life.
  • Versatile Installation – Can be mounted in ductwork in any position (horizontal, vertical, or angled).
  • Energy Efficiency – Aerodynamically designed impellers reduce energy consumption while maximizing airflow.
  • Low Noise Operation – V-belt drive system supports smoother and quieter performance.
  • Customizable Options – Available in different diameters, materials (including stainless steel), and with accessories for specific industrial needs.
  • High Temperature & Explosion-Proof Models – Special construction available for high demanding applications
  • Easy Maintenance – Features like extended lube lines and self-aligning pillow block bearings simplify servicing.

Cleantek Belt Driven Tube Axial Fans are engineered for high efficiency, durability, and adaptability in challenging industrial environments. Their adjustable pitch blades allow fine-tuning of performance, ensuring the right balance of airflow and energy savings. With the motor positioned outside the airstream, these fans deliver safe operation even in contaminated or high-moisture environments.

The belt drive system provides flexibility in speed control while maintaining smooth, quiet operation. Optional accessories such as mounting brackets, guards, inspection doors, and stainless-steel construction make them highly versatile for various industries. Designed to withstand continuous duty, Cleantek’s tube axial fans are a cost-effective and dependable solution for long-term ventilation needs.

  • Diameters: 12″ to 54″
  • Airflow Capacity: Up to 50,000 CFM
  • Standard Range: Diameters 12″ to 24″, capacities up to 50,000 CFM
