Enhance Workplace Safety with Cleantek's Portable Welding Fume Extraction System
Cleantek® Portable Welding Fume Extraction System
Product Overview:

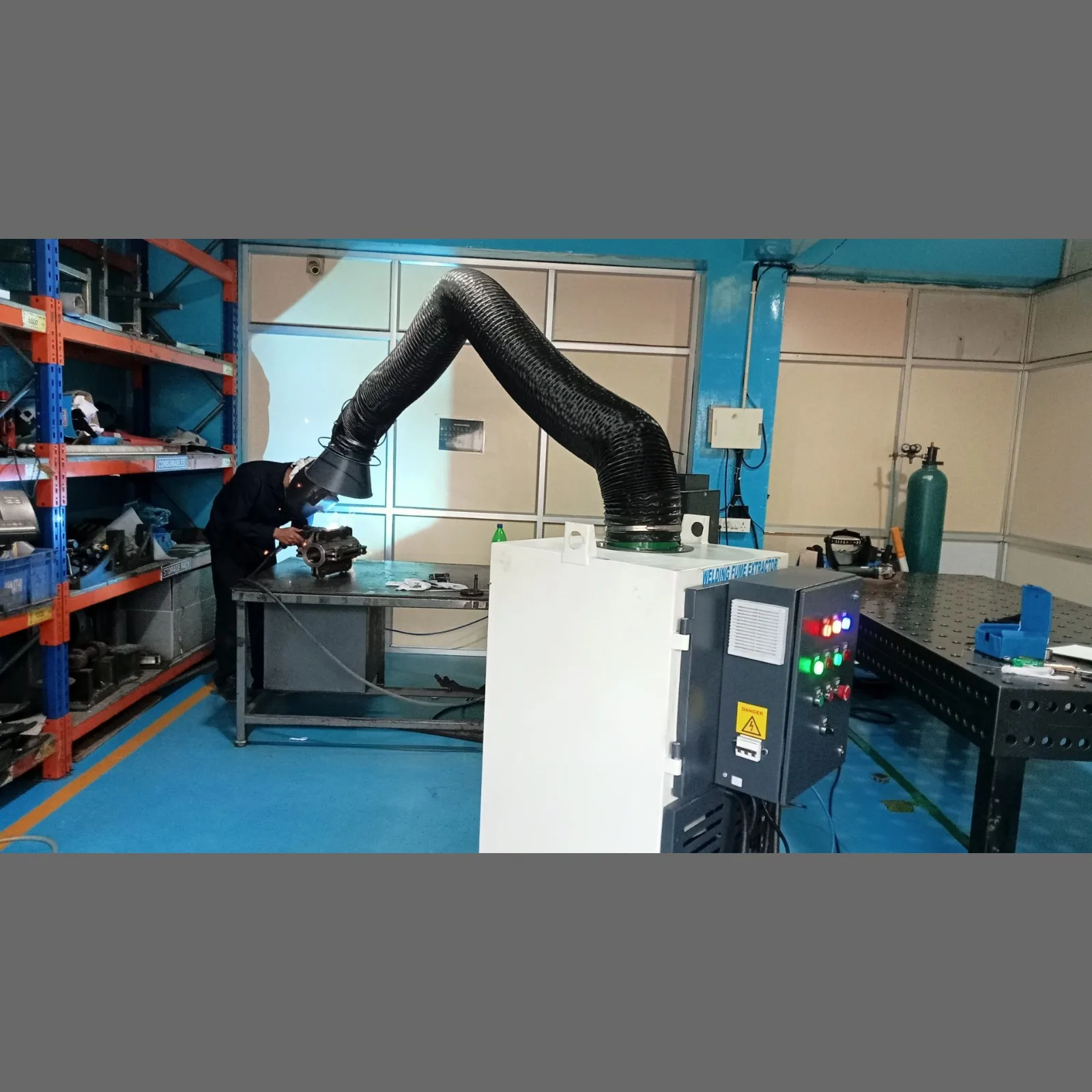

Cleantek® Portable Welding Fume Extractor is a compact and mobile solution specially designed to capture and extract harmful welding fumes, gases, and fine dust particles generated during welding operations. This plug-and-play unit is ideal for confined workspaces, small workshops, and maintenance areas where localized extraction is required.
Key Features:
- High-efficiency filtration with multi-stage filters (Pre-filter, HEPA, and activated carbon)
- Articulated suction arm (2 or 3 meters length) with 360° rotation and hood
- Powerful blower with high suction capacity
- Low noise and energy-efficient operation
- Mounted on wheels for easy mobility
- Suitable for MIG, TIG, arc welding, and soldering applications
- Complies with industrial air quality norms
Applications:
- Metal fabrication units
- Welding training centers
- Automobile garages and body shops
- Maintenance departments
- Aerospace and defense manufacturing
- Electronic soldering stations
Benefits:
- Protects operators from inhaling toxic fumes
- Improves indoor air quality and workspace hygiene
- Helps comply with factory safety standards
- Portable design saves floor space and enables mobility
- Easy maintenance and filter replacement
Technical Specifications:
Parameter | Model |
Model | Cleantek PFE-100 / PFE-200 |
Airflow Capacity | 1000 to 2000 CMH |
Suction Arm Length | 2 or 3 meters (flexible, articulated) |
Filtration System | Pre-filter + HEPA filter + Carbon filter |
Filter Efficiency | Up to 99.97% for particles ≥ 0.3 microns |
Motor Power | 0.75 HP to 2 HP |
Voltage | 230V / 415V, 50 Hz |
Noise Level | < 70 dB(A) |
Construction | Powder-coated MS or SS body |
Mobility | Heavy-duty caster wheels |
Hose Diameter | 150 mm or customized |
Optional | Digital timer, differential pressure gauge, spark arrestor |
