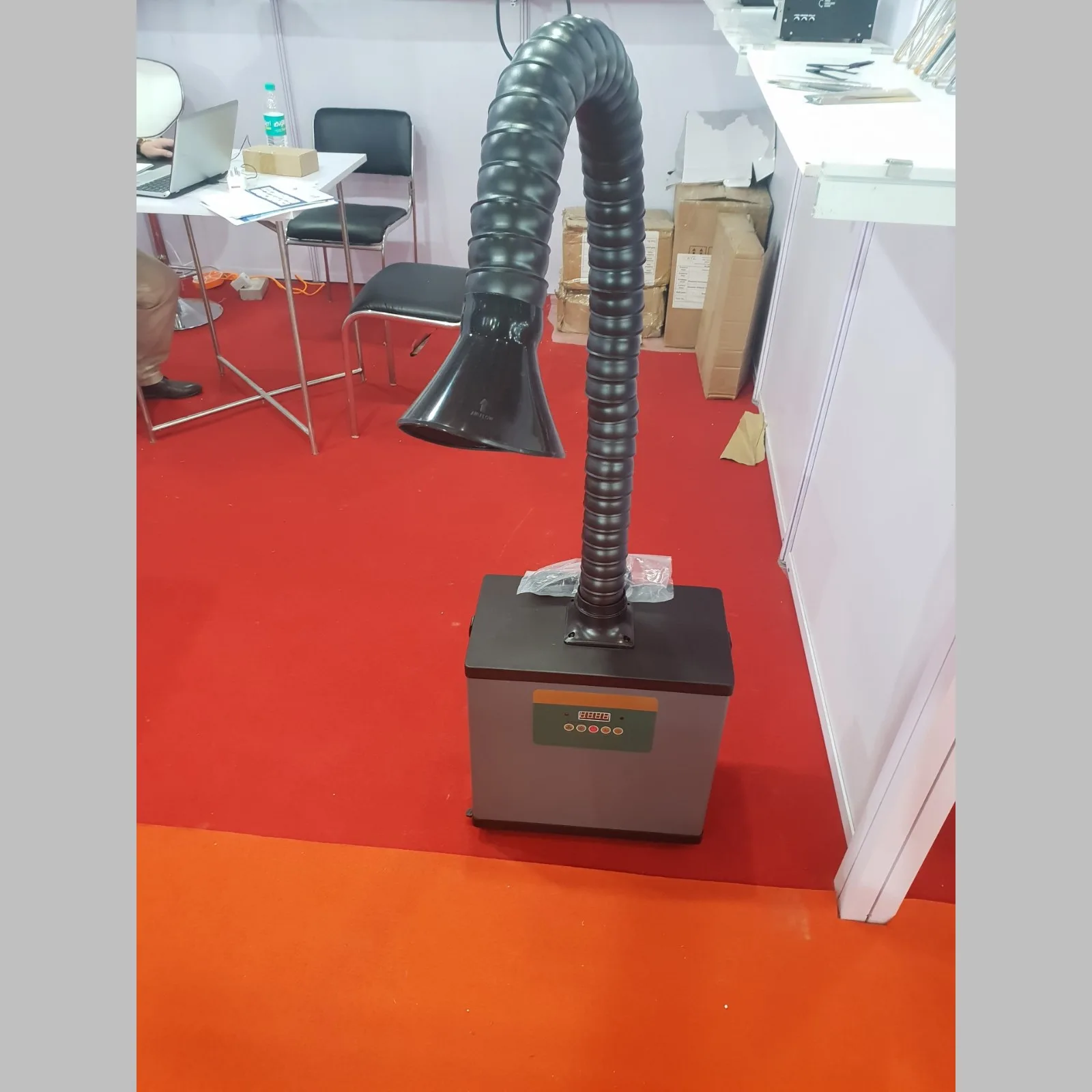

Soldering Fume Extractor SFE100

Soldering Fume Extractor manufacturers:

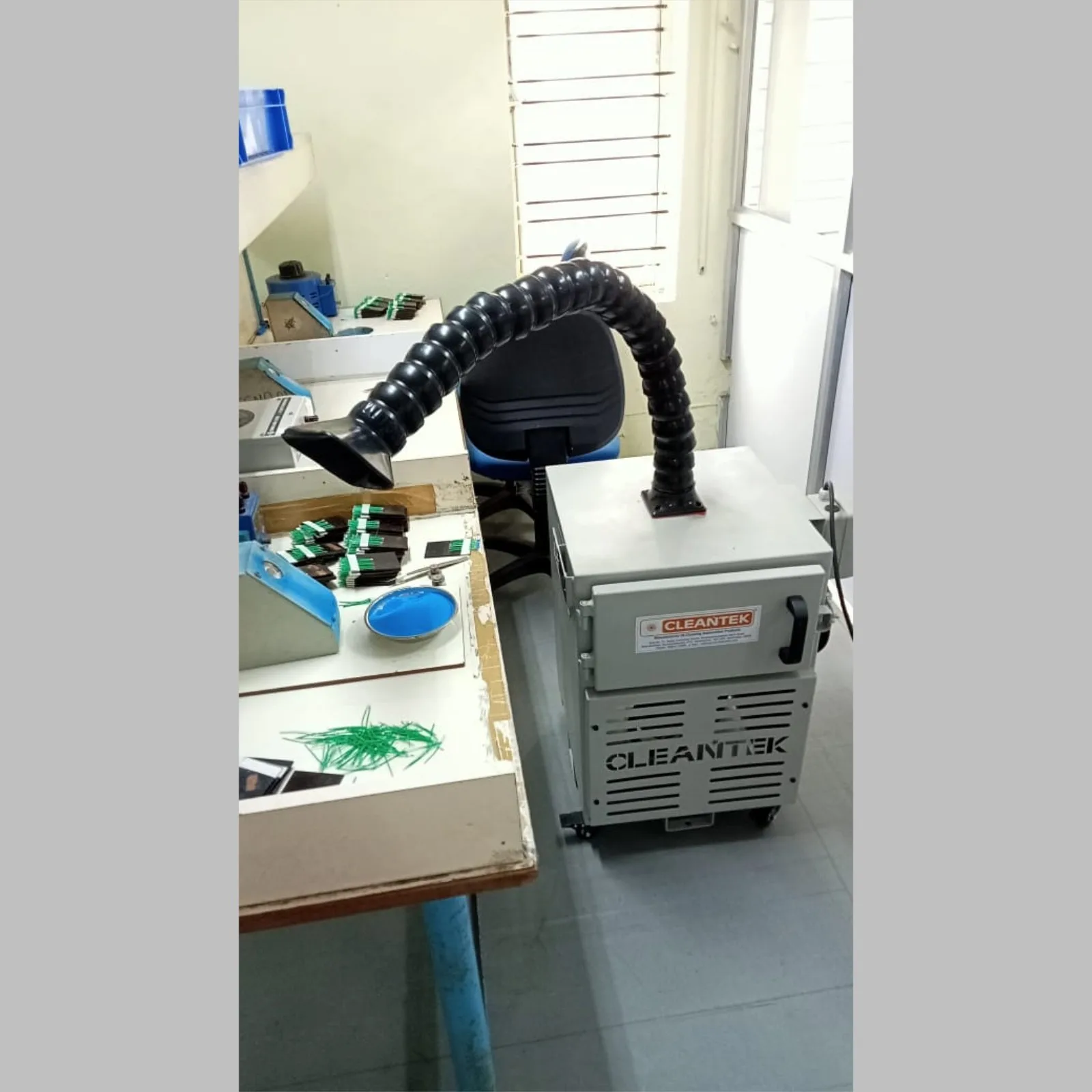

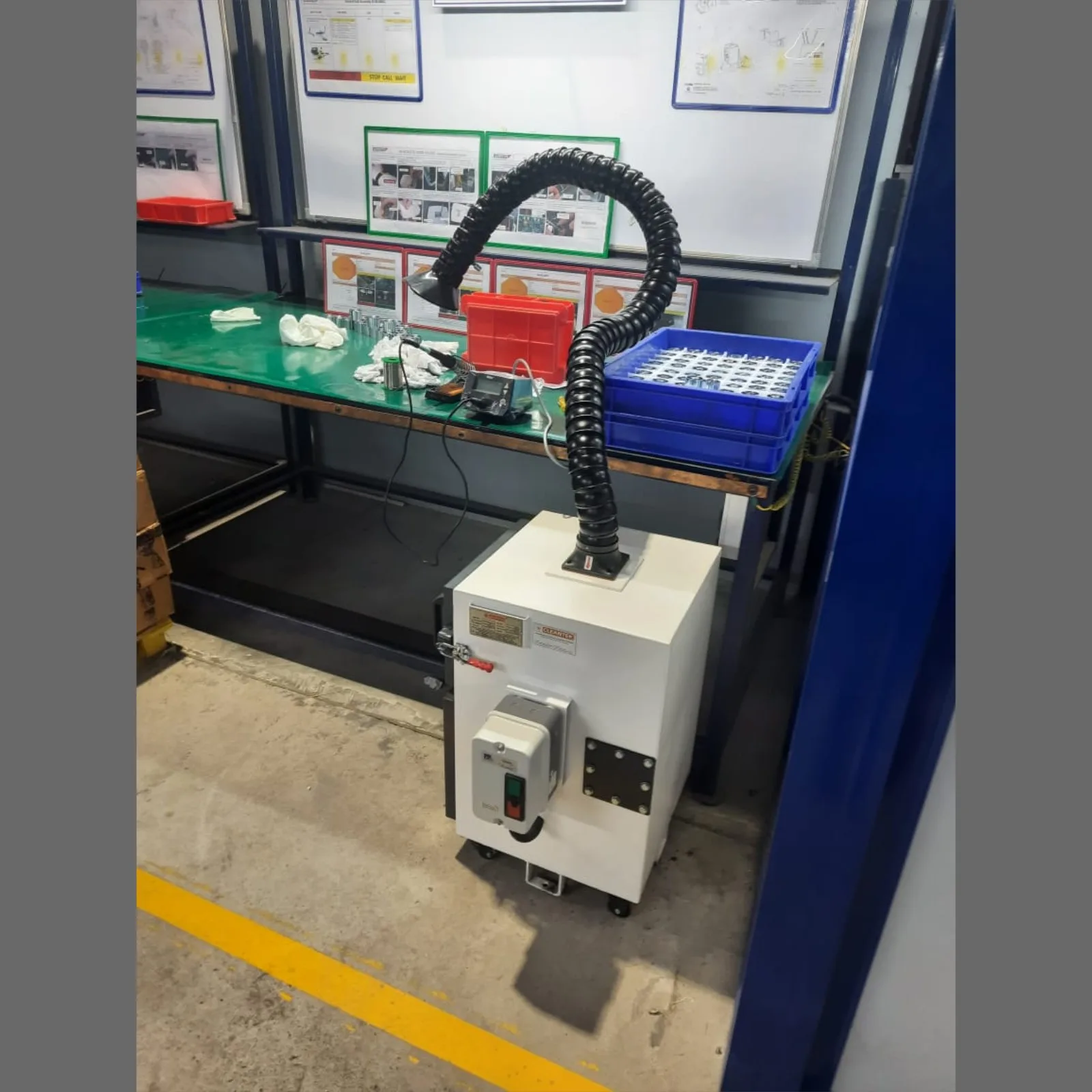

CLEANTEK Soldering Fume Extractor is manufactured for heavy-duty industrial use to capture the pollution at source. Unit attached with the frame of a portable wheel to move wherever fume extraction is required. Fume extractor consists of 4 stage filtration with a modern electrostatic filtration system. This electrostatic filtration requires periodic cleaning only. The Extractor Features four-stage filtration and purification. System controlled by a control panel operated at 415 V / 50 Hz.

How it works:

Contaminated air is drawn by the suction motor threw the washable stainless steel mesh filter which traps the large dust particles. Then the air pass through fine filter fabric, here fine dust particles are filtered. Remaining air stream pass into the strong electric field (12.5 Kv to 13 Kv) (Ionizing section) where particulate receives an electrical charge. The charged particles then pass into a collector plate section made up of a series of equally spaced parallel plates.

Each alternate plate is charged with the same polarity (6 Kv -7Kv) (Collecting section) as the particles, which repel, while attract and collect the contaminants. The contaminants are held in these plates until they are washed away. Further air pass into the gas phase activated carbon filter. Here the toxic gases are absorbed by the activated carbon. Then pure air sent out threw Exhaust line.

The compact design of these fume extractors makes them ideal for use in small spaces or for occasional use in different areas of a facility. They can be easily moved around the workspace and positioned where needed, making them a versatile and convenient solution for controlling harmful fumes and particles during soldering operations. Cleantek compact soldering fume extractor is an important tool for maintaining a safe and healthy working environment, protecting workers from harmful fumes and particles that can cause respiratory problems and other health issues.

Cleantek Soldering Fume Extractors are specialized systems designed to effectively remove harmful fumes, gases, and particulates generated during soldering, welding, and other similar industrial processes. These extractors play a crucial role in maintaining a safe and healthy working environment for operators by capturing and filtering hazardous fumes at the source. These units utilize multi-stage filtration systems that include pre-filters, HEPA filters, activated carbon filters, or other specialized media. These filters efficiently capture and remove various types of fumes, gases, and particulates produced during soldering.
